Home/ Products / DC1113 High Precision CNC Milling Machine

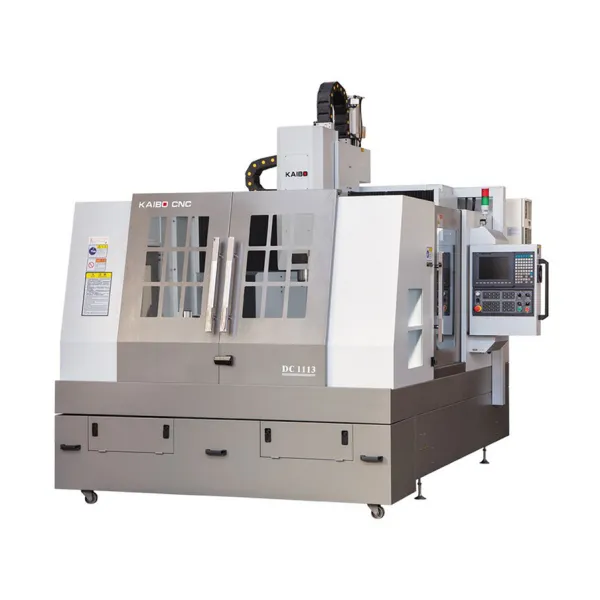

DC1113 High Precision CNC Milling Machine
The DC1113 is a robust medium-sized double-column CNC milling center, expertly engineered for high-precision iron mold machining. It boasts exceptional stability and comes equipped with efficient tooling and a rotary table, making it versatile for different processing techniques.
Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135146/12产品cnc-milling-machine-for-iron-mould-dc1113-1.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134957/cnc-milling-machine-for-iron-mould-dc1113-2.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134957/cnc-milling-machine-for-iron-mould-dc1113-3.jpg
Product Parameters
Accuracy
positioning accuracy: 0.01 mm
Repeatability: 0.005 mm
See more
Workbench
working desk size: 1100*1300mm
T-slot dimensions: 6T-18-185 mm
Maximum load: 2000 kg
Processing range
X/Y/Z axis travel: 1100/1300/400 mm
Gantry width: 1140 mm
Beam to workbench: 660 mm
Spindle nose to worktable: 150-550 mm
Door opening width: 1170 mm
Feed
Maximum feed speed G00: 15 m/min
Maximum processing speed G01: 10 m/min
X/Y/Z axis motor power: 1800W/1800W/1800W
Spindle
Spindle motor power: 7.5kW
Maximum spindle speed: 12000 rpm
Tool holder: BT40
Spindle diameter: -
Common
Power supply and total capacity: 3P/380V/50Hz/20KVA
Machine weight: 7500 kg
aspect: 3200*2450*2800mm
The main components
Controller: Syntec 21MA/Taiwan
AC servo motor (driver): Yaskawa/Japan
Spindle inverter: Innovation/China
Linear Guides: 45 Hiwin, PMI/Taiwan
Ball Screw: 4010 Hiwin, PMI/Taiwan
Electronic handwheel: EHDW-BA5S-1 Future/Taiwan
Lubrication system: YET-A2P2 ISHAN/Taiwan
Oil Cooler: Parsonshal/China
air conditioner: EA-6AP Parsonsall/China
Pneumatic system: AirTac/Taiwan
Chip conveyor: Internal thread type
Water tank capacity: 220 liters
Water pump power: 400W
Tool magazine (optional)
ATC Type: Arm Type
Air traffic control capabilities: 24 items
Close
Product Details
Product Introduction
CNC milling machine DC1113 is a medium-sized double-column CNC milling center suitable for processing iron molds. It adopts a movable bridge, fixed crossbeam, and fixed worktable structure with high strength, good stability and high precision.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807134957/cnc-milling-machine-for-iron-mould-dc1113-4.jpg
Advantages and features
1. Reasonable structure and strong stability
2. Powerful mechanical spindle and high precision
3. Equipped with 24 tool arms and optional tool magazine to improve processing efficiency
4. Built-in spiral chip conveyor for efficient cleaning
5. Can be equipped with 4/5-axis rotary table, suitable for different processing methods
6. Adopt high-quality ball screw and linear guide, strong and durable
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240822094906/1724291360634_cnc-milling-machine-for-iron-mould-dc1113-5.png
Application Scenario
1. Plastic mold
2. Shoe Model
3. Auto parts
4. Graphite
5. Roller processing
6. Hardware Manufacturing
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240822094938/1724291389305_cnc-milling-machine-for-iron-mould-dc1113-6.png
Ordering Information
Custom Request
Our products support customization!
Packing and shipping
Support wooden box packaging and vacuum tin foil packaging;
All packaging complies with ocean, truck and railway standards;
Payment method
COMM
COMM
L/C
L/C
T/T
T/T
A/P
A/P
O/A
O/A
D/P
D/P
D/A
D/A
Refunds
If there is any problem with the product, please contact us at the first time.
Corporate Information
Ningbo Kaibo CNC Machinery Co., Ltd.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/科学技术成果登记证书-精密高效快速数控钻铣复合加工中心的关键技术研究及产业化.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/科学技术成果登记证书-基于YSNTEC控制系统的图形对话式自动编程系统软件在高性能雕刻机中的应用.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/科学技术成果登记证书-五轴联动告诉精密雕铣机数控系统关键技术研究及开发.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/浙江制造认证证书%202024.11.27.jpg
100%
On-time delivery rate
Less than 3 hours
Response time
52000
Construction area
Service Guarantee
Service Information
Tel
+86-15805747758
Email
[email protected]
Address
Industry Area of ​​Changjie, Ninghai, Ningbo, Zhejiang, China
Call Now
Advisory Message
Pre-sales advice
Equipment can be customized according to your requirements (machine configuration, color...)
After-sales service
1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.
Specific details
Please contact us
Product Specifications Reference
Spindle type
BT40/11kw/12000rpm mechanical spindle BT40/15kw/12000rpm mechanical spindle HSK A63/11kw/24000rpm electric spindle HSK A63/11kw/24000rpm electric spindle More spindles
Tool magazine type
Arm type tool magazine (24 pieces) Arm type tool magazine (32 pieces)
